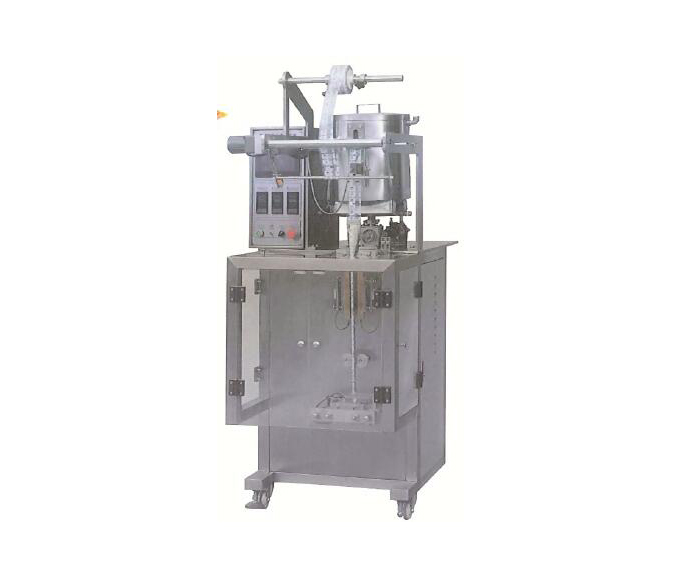

OCL-320CD果凍條自動包裝機 Jelly stick automatic packaging machine
全國服務熱線:
159-1595-6886(微信同號)全國服務熱線:
159-1595-6886(微信同號)用途:Application
果凍、飲料、水果汁、豆奶、油粉、酸奶的條狀或棒裝包裝。
It is suitable for jrlly, beverage, fruit juice, bean milk, oil powderor soru milk in botl7 bar and stick shape.
功能:Function
自流式節流下料。封口為背封;撇電腦控制系統.人機界面設定;自動完成制袋、計量、充填、封合、計數、分切及熱壓批號(可定制)等作業。
This unitadopts selfflow type feeding and back side sealing, micro-computercontro HMltouch setup that can auto complete pouch一making, measuring filling, sealing,counting, sliding and hear press lot number (customizde anailable)ect.
技術參數:Technical Parameter
制袋范圍 Bag Making Range | Length:30-280mm Width:10-90mm |
包裝速度 Packing Speed | 25-110 bags/min |
計量范圍 Filling Range | 5-300ml |
包裝膜最大寬度 Film Max- width | 90mm |
包裝膜最大外徑 Film Max. Out Dia | D90mm |
下料方式 Weighe Checker | 液體泵Oump Filler |
功 率 Main Power | 1.2kw |
電 源 Power Supply | 220V 50Hz |
機 重 Weight | 300kg |
外形尺寸 Dimension | 700x850x1850mm |
